12 Spindle Automatic Ferrite Transformer Coil Winding Machine

Hero Honda Automobile Coil Winding Soldering Machine

Coil Winding Machine

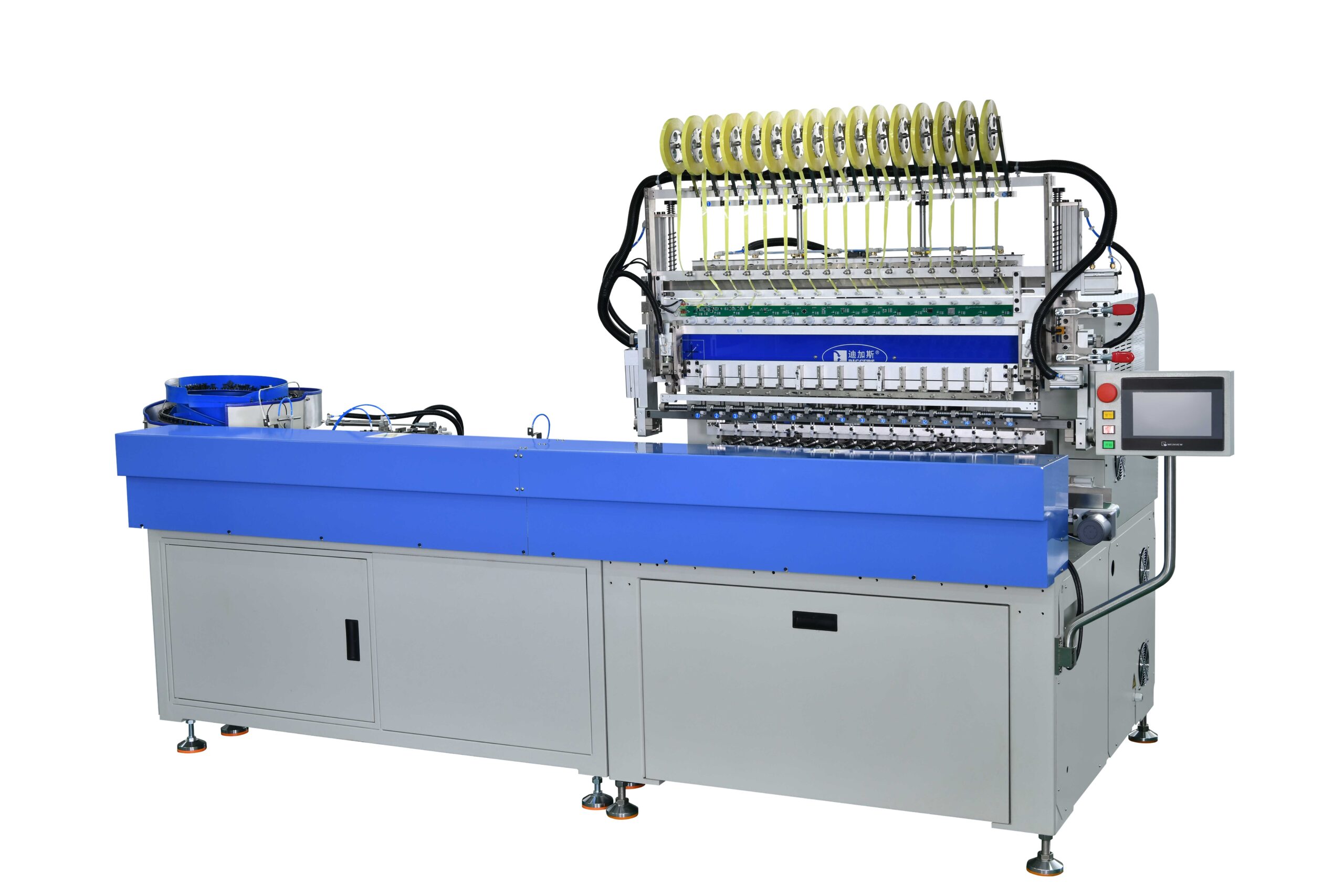

12 Spindle Automatic Ferrite Transformer Coil Winding Machine

Name: 12 Spindle Automatic Ferrite Transformer Coil Winding Machine - DepTronics Technologies
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Core Components adopted are all imported from Japan, high reliability & quality performances.
CNC 5-axis AC servo motor transmission system, accuracy position control
Program through touch panel HMI
Unique quick & easy coupling fixture design, reduce the time of changing type of model.
Nozzle beam positioning, option from 0, 90, 120 degree for wrapping different angle.
Use the precision tensioner with anti-tension control function, delivers a nice and even spreading winding results.
Main body of the machine is made of heavy cast iron, ensures stability.
A novel design, simple structure, easy operation and easy maintenance.
Password protection
High productivity, stability and efficiency
Optional Functions: Fully Auto loading- unloading system/ Auto Taping attachment/ Auto wire clip/ Break or waste wire discharge/ Auto Skeiner/ Pneumatic scissors or cutter/ Auto wire enamel layer remover etc.

Category: Coil Winding Machine

Description
Reviews (1)

Multi-spindle coil winding machines are usually used in transformer, relay, solenoid, high frequency chock coils, inductors winding.
We are leading supplier and dealer of Programmable coil winding machines providing full service and support after-sales.

We offered high features & low cost machines with its simple design and optimum winding speeds.
Designed and developed with sophisticated manufacturing technology the robust quality machine is accessible with standard accessories at a market leading price.

We offered different types of models in our multi-spindle winding section.
Based on customer’s requirements and production target, we can offer 12, 16, 20 & 24 spindle coil winding machines.
12 Spindle Automatic Ferrite Transformer Coil Winding Machine

Machine Specifications

Model	NMT-8008	NMT-8012	NMT-8016
Number of Spindle	8	12	16
XYZ Axis Control System	CNC Precise software control	CNC Precise software control	CNC Precise software control
Data Storage	RAM+ FLASH	RAM+ FLASH	RAM+ FLASH
Tensioner	Magnetic Or Servo Tensioner	Magnetic Or Servo Tensioner	Magnetic Or Servo Tensioner
Pitch between spindles	45 mm	45 mm	45 mm
Max. of bobbin diagonal	40 mm	35/60 mm	35 mm
Servo Motor	Spindle : 1500W Option : X:200 Y:200 Z:400	Spindle : 1500W Option : X:200 Y:200 Z:400	Spindle : 1500W Option : X:200 Y:200 Z:400
Winding Direction	CW/CCW	CW/CCW	CW/CCW
Spindle stop accuracy	+/- 0.1 degree	+/- 0.1 degree	+/- 0.1 degree
Wire Range (mm)	0.02~0.4	0.02~0.4	0.02~0.4
X Axis Nozzle moving forward & backward distance	110 mm	110 mm	110 mm
Y Axis Nozzle moving left & right distance	150 mm	150 mm	150 mm
Z Axis Nozzle moving up & down distance	70 mm	70 mm	70 mm
XYZ axis speed	200 mm/sec.	200 mm/sec.	200 mm/sec.
XYZ axis moving precision	0.01 mm	0.01 mm	0.01 mm
Wire Anchoring Angle	0/ 90 degree	0/ 90 degree	0/ 90 degree
Power	AC 220V, 50Hz	AC 220V, 50Hz	AC 220V, 50Hz
Power Consumption	3000W	3000W	3500W
Air Pressure	4~6 kgf/cm2	4~6 kgf/cm2	4~6 kgf/cm2
Machine Dimension (LxWxH)	1350 x 1250 x 1400	1350 x 1250 x 1400	1350 x 1250 x 1400
Space required for machine	L2550 x W2900x H2000 mm	L2550 x W2900x H2000 mm	L2550 x W2900x H2000 mm
Machine Weight	750 kg.	800 kg.	850 kg.
Optional Functions	Fully auto loading- unloading, auto taping, auto wire clip, waste wire discharge	Fully auto loading- unloading, auto taping, auto wire clip, waste wire discharge	Fully auto loading- unloading, auto taping, auto wire clip, waste wire discharge
Optional Devices	Wire Twisting, Niper/ pneumatic cutter, servo tension meter, Copper enamel remover	Wire Twisting, Niper/ pneumatic cutter, servo tension meter, Copper enamel remover	Wire Twisting, Niper/ pneumatic cutter, servo tension meter, Copper enamel remover
