The manufacturing industry is shifting towards automation to increase efficiency, reduce labor costs, and improve product consistency. One of the most advanced developments in this sector is the Fully Autopilot Production Line for Solenoid Coil Manufacturing. This system integrates automatic winding, soldering, and testing, enabling high-volume, error-free production.
With the rising demand for high-quality solenoid coils in various industries, including automotive, medical, industrial automation, and consumer electronics, businesses are now adopting automated solutions to stay competitive. The transition from manual or semi-automatic processes to fully automated production lines can increase productivity by over 400% while maintaining precision and consistency.

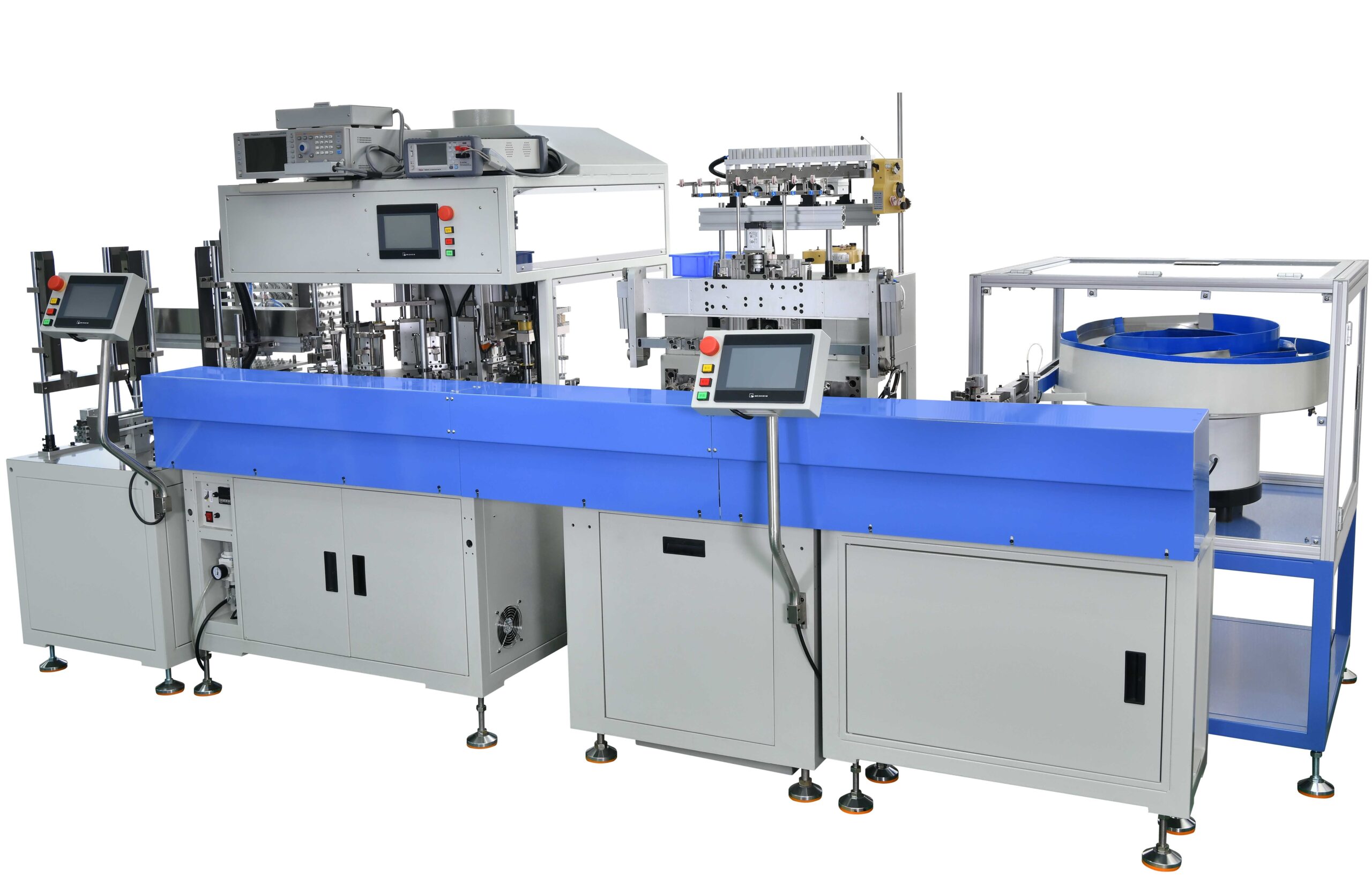

Fully Autopilot Machine Line for Solenoid Valve Coil Manufacturing
What is a Fully Autopilot Solenoid Coil Production Line?
A fully autopilot production line is an advanced automation system designed to manufacture solenoid valve coils with minimal human intervention. This system includes:
- Automatic feeding of solenoid bobbins
- 12-spindle high-speed winding with polyester or Kapton taping
- Auto soldering or spot welding (as per customer requirements)
- Automatic flux dipping & pin pressing
- Resistance & interlayer insulation testing
- NG/Good product separation
- Fully automated unloading system
The goal of this system is to improve efficiency, reduce errors, and enhance production quality. Traditional coil winding and soldering processes require manual intervention, leading to inconsistencies, production delays, and high labor costs. A fully automated setup eliminates these challenges and allows businesses to focus on scalability and quality control.
Machine Workflow & Flowchart
Step-by-Step Machine Process
Below is the step-by-step workflow of the Fully Autopilot Solenoid Coil Production Line:
1. Automatic Bobbin Feeding
- The bobbins are automatically fed into the system via a vibrator bowl to ensure consistent and smooth feeding.
- Vibratory feeders align and position the bobbins for seamless transition into the winding stage.
2. 12-Spindle Winding & Taping
- The bobbins enter the high-speed winding machine, where 12 spindles work simultaneously.
- Each coil is wound precisely with polyester or Kapton tape as per specifications.
- The machine ensures perfect tension control and layer alignment.
- Automated inspection mechanisms check for misalignment or defects in real-time.
3. Automatic Unloading to Soldering Station
- Once winding is completed, the coils are automatically transferred to the soldering station.
- A robotic arm or conveyor system ensures smooth transition without human interference.
4. Auto Flux Dipping & Soldering / Spot Welding
- The machine dips each coil into flux for proper bonding.
- Auto soldering or spot welding is performed based on customer requirements.
- Advanced temperature control ensures strong, reliable joints without overheating or damage.
5. Automatic Pin Pressing
- The system automatically presses the pins into position with precision.
- High-speed servo-controlled mechanisms ensure exact pin placement for electrical connections.
6. Resistance & Interlayer Testing
- Each coil undergoes automatic resistance and interlayer insulation testing.
- Advanced AI-based testing algorithms detect even the smallest anomalies, ensuring 100% defect-free production.
7. NG/Good Separation & Automatic Unloading
- The machine automatically separates defective (NG) coils from good ones.
- The final high-quality solenoid coils are unloaded, ready for further processing or shipping.
Process Flowchart
[Bobbin Feed] → [Winding & Taping] → [Transfer to Soldering] → [Flux Dipping] → [Soldering/Welding] → [Pin Pressing] → [Testing] → [NG/Good Separation] → [Unloading]
Technical Specifications
| Feature | Specification |
|---|---|
| Winding Spindles | 12 |
| Taping Material | Polyester / Kapton |
| Soldering Type | Auto Soldering / Spot Welding |
| Testing Parameters | Resistance & Interlayer Insulation |
| NG Separation | Automatic |
| Power Consumption | Optimized for industrial use |
| Output Capacity | High-speed production |
| Machine Control | PLC & HMI Touchscreen |
Features of the Fully Autopilot Production Line
- High-speed automated operation for mass production.
- Multi-functionality – winding, soldering, testing, and separation in one machine.
- Precision control ensures consistent coil quality.
- User-friendly PLC & HMI control panel.
- Customizable settings as per coil specifications.
- Low maintenance & high durability.
- AI-based defect detection for zero-error output.
Advantages & Benefits for Manufacturers
1. Increased Production Efficiency
- Automates the entire process, reducing cycle time.
- Ensures consistent quality across all production batches.
2. Reduced Labor Costs
- Eliminates the need for multiple operators.
- Minimizes errors caused by human handling.
3. Higher Product Quality
- Automated testing ensures every coil meets quality standards.
- No manual errors, leading to zero defects.
4. Faster Return on Investment (ROI)
- Higher output, lower defects, and reduced labor costs lead to a quicker ROI.
- Estimated ROI Calculation:
- Manual production: 100 coils per hour
- Automated production: 800+ coils per hour
- Cost savings: 80-90% per batch
Use Cases & Customer Testimonials
- Automotive Industry: Large-scale solenoid production for fuel injection systems.
- Medical Devices: Precision winding for medical solenoid valves.
- Industrial Automation: Mass production of solenoids for factory machinery.
Why Choose Deptronics Technologies?
1. Industry-Leading After-Sales Service
- Dedicated customer support to resolve any technical issues.
- Quick response time for troubleshooting.
2. Installation Across India
- We provide on-site installation services in all regions of India.
- Expert engineers ensure a smooth setup at your factory.
3. Comprehensive Online & On-Site Support
- Remote assistance & real-time troubleshooting via video calls.
- On-site service visits available for complex issues.
4. Professional Training Programs
- In-depth operator training to maximize machine efficiency.
- Programming training for customization and future upgrades.
5. Maintenance & AMC (Annual Maintenance Contracts)
- Preventive maintenance programs to enhance machine lifespan.
- AMC plans available for worry-free long-term performance.
6. High-Quality Machines with Long-Term Reliability
- Advanced automation technology ensuring precision and efficiency.
- Built with robust components for durability and long service life.
Working Videos
Final Thoughts
The Fully Autopilot Production Line for Solenoid Coil Manufacturing is a game-changer for the industry. With its cutting-edge automation, precise testing, and high-speed operation, it ensures quality, efficiency, and cost-effectiveness. If you’re looking to scale your solenoid coil production with minimal manual effort, this machine is the ultimate solution.
